Khoom Description

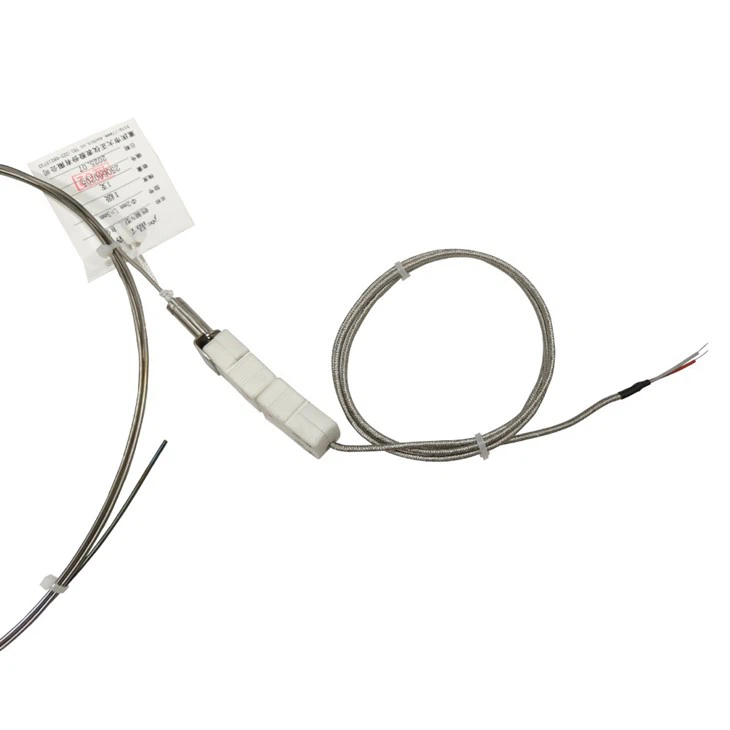

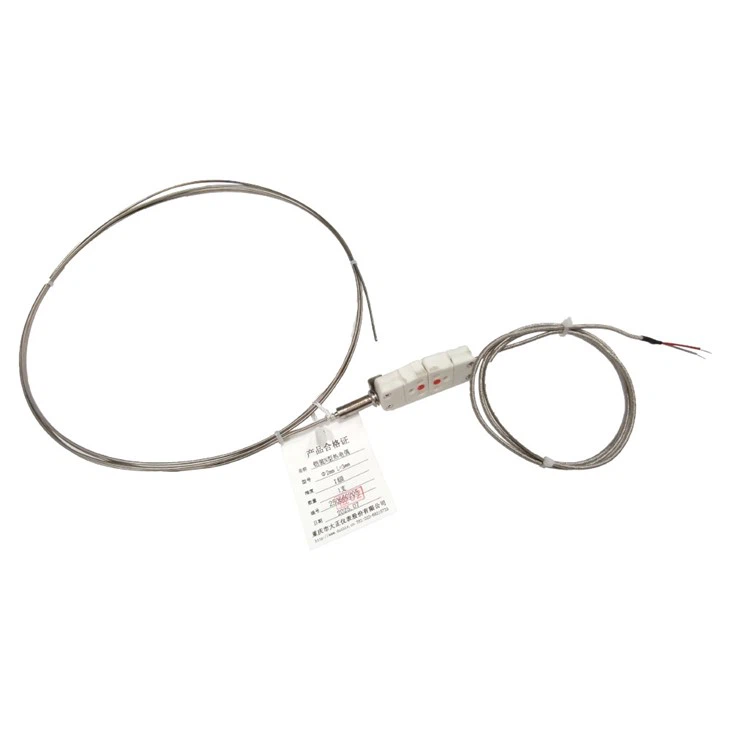

Sheath-type N-hom Thermocouple nrog Inconel 600 sheath yog qhov tshwj xeeb kub -sensing ntaus ntawv tsim los rau kev lag luam txhim khu kev qha hauv cov cheeb tsam xav tau.

I.Core Parameters

Qeb Parameter	Tshwj xeeb Parameter	Tus nqi / Nqe lus piav qhia
Hom Thermocouple	Calibration	Hom N (NiCrSi-NiSiMg)
Kev txwv qhov yuam kev thiab qhov ntsuas kub zoo	Qib 1	± 1.5℃lossis ± 0.4% t, -40 ~ 1000 degree
	Qib 2	± 2.5℃lossis ± 0.75% t, -40 ~ 1200 degree
	Qib 3	± 2.5℃lossis ± 1.5% t, -40 ~ 200 degree
Temperature Resistance Performance	Qhov siab tshaj plaws Oxidation Resistance Kub ntawm Hom N Thermocouple	1300 degree
	Qhov ntsuas kub siab tshaj plaws ntawm Inconel 600 Sheath	1093℃(tseem muaj kev ncaj ncees)
Chemical Composition ntawm Sheath Material	Nickel (Ni)	Kwv yees li 76%
	Chromium (Cr)	Kwv yees li 16%
	Hlau (Fe)	Kwv yees li 8%

II. Cov yam ntxwv ntawm cov khoom

Kev ntsuas kub ntsuas: Raws li cov txiaj ntsig Seebeck, nws tsim ib lub voj voog kaw nrog ob qhov sib txawv hlau conductors (Nicrosil / Nisil alloys), thiab xam qhov kub thiab txias los ntawm electromotive quab yuam tsim los ntawm qhov kub sib txawv ntawm qhov ntsuas qhov sib txuas thiab kev siv hlws ris.

Cov yam ntxwv ntawm tus qauv: Txais Inconel 600 alloy ua cov ntaub thaiv npog los muab cov khoom siv thiab tshuaj tiv thaiv rau cov xaim thermocouple sab hauv, koom nrog cov cuab yeej tshwj xeeb uas ntsuas kub.

Cov yam ntxwv ua tau zoo: Cov thermoelectric kev ua tau zoo linearity zoo dua li ntawm K-hom thermocouples nyob rau hauv qhov kub ntawm 400-1300 degree, thaum lub nonlinearity nce nyob rau hauv qhov ntau ntawm -200-400℃; nws muaj cov yam ntxwv ntawm kev tiv thaiv hluav taws xob hluav taws xob thiab qhov chaw qis qis.

III. Specifications ntawm Cov Cheebtsam

(I) Hom N Thermocouple

Khoom siv: Nicrosil/Nisil alloy (NiCrSi-}NiSiMg) Lub luag haujlwm tseem ceeb: Kev ua haujlwm zoo oxidation tsis pub dhau 1300 degree, zoo ntev -lub sij hawm ruaj khov thiab rov ua dua nyob rau hauv thermal cycling, thiab zoo linear kev ua tau zoo ntawm thermoelectric zog nyob rau hauv nruab nrab thiab siab kub ntau yam.

(II) Inconel 600 Sheath

Cov Khoom Siv Khoom Siv: Ib qho nickel-chromium- hlau alloy nrog siab - kub lub zog thiab corrosion kuj, muaj peev xwm tiv taus corrosion los ntawm feem ntau cov acids, alkalis thiab ultrapure dej.Functional Specifications: Ua hauj lwm raws li kev tiv thaiv thaiv kom cais cov thermocouple hlau los ntawm kev puas tsuaj los ntawm cov khoom siv tshuaj lom neeg xws li tshuaj lom neeg thiab tshuaj lom neeg. av noo, plua plav thiab corrosive gases.

IV. Daim ntawv thov Scenario

Cov khoom siv rauv

Kev ua tshuaj lom neeg

Fais fab tuag systems

V. Khoom Zoo

High -Tub kub Adaptability: Hom N thermocouple tswj cov oxidation zoo nyob rau hauv 1300 degree, thiab Inconel 600 sheath khaws cov qauv kev ruaj ntseg nyob rau hauv 1093 degree, haum rau siab -kub muaj xwm txheej.

Kev ntsuas kev ruaj ntseg: Zoo heev ntev - lub sij hawm ruaj khov thiab rov ua dua nyob rau hauv thermal cycling kom paub meej qhov ntsuas kub zoo ib yam.

Environmental kam rau ua: Resistant mus rau nuclear hluav taws xob thiab tsis kub kub, thiab lub sheath yog resistant rau acid thiab alkali corrosion, haum rau complex thiab hnyav ua hauj lwm tej yam kev mob.

Kev ntsuas qhov tseeb: Cov thermoelectric kev ua haujlwm zoo dua li K-hom thermocouples nyob rau hauv nruab nrab thiab siab kub ntau (400-1300 degree), uas ua rau qhov ntsuas kub tau raug ntau dua.

Lub neej ua haujlwm ntev: Cov nyhuv tiv thaiv ntawm lub tsho tiv thaiv txo qhov poob ntawm cov tub ntxhais thermocouple thiab txuas ntxiv lub neej kev pabcuam tag nrho ntawm cov khoom siv.

VI. Cov lus nug nquag

Q1: Koj puas kam txais cov qauv txiav txim?

A: Yog lawm, peb zoo siab txais tos cov qauv txiav txim rau kev kuaj xyuas zoo thiab ua pov thawj.

Q2: Lub sijhawm khoom xa tuaj yog dab tsi?

A: Qauv ntau lawm yuav siv sij hawm 5-7 hnub; bulk ntau lawm yuav siv sij hawm 2-3 lub lis piam nyob ntawm seb qhov kev txiav txim kom muaj nuj nqis.

Q3: Puas muaj qhov tsawg kawg nkaus Order Quantity (MOQ)?

A: MOQ yuav tsum yog tsawg; peb txhawb nqa 1-daim qauv txiav txim rau kev soj ntsuam zoo.

Q4: Txoj kev xa khoom thiab lub sijhawm xa khoom yog dab tsi?

A: Kev xa khoom tsis tu ncua suav nrog DHL, UPS, FedEx, lossis TNT, nrog lub sijhawm xa khoom ntawm 3-5 hnub; huab cua freight los yog hiav txwv freight kuj muaj.

Q5: Koj puas muab cov khoom pov thawj?

A: Yog lawm, peb muab 1 xyoo lav rau peb cov khoom.

Mineral insulated thermocouple txwv ntawm qhov yuam kev

Thermoelement	Hom	Kev txwv ntawm kev ua yuam kev (± degree) / Qhov ntsuas kub zoo (degree)
Thermoelement	Hom	1 chav	2 chav	3 chav
NiCr10-NiSi3	K	1.5 lossis 0.4% t / -40 ~ 1000	2.5 lossis 0.75% t / -40 ~ 1200	2.5 lossis 1.5% t / -40 ~ 200
NiCrSi-NiSiMg	N	1.5 lossis 0.4% t / -40 ~ 1000	2.5 lossis 0.75% t / -40 ~ 1200	2.5 lossis 1.5% t / -40 ~ 200
NiCr-Constantan	E	1.5 lossis 0.4% t / -40 ~ 800	2.5 lossis 0.75% t / -40 ~ 900	2.5 lossis 1.5% t / -40 ~ 200
Fe- Constantan	J	1.5 lossis 0.4% t / -40 ~ 750	2.5 lossis 0.75% t / -40 ~ 750	--
Copper - Constantan	T	0.5 lossis 0.4% t / -40 ~ 350	1.0 lossis 0.75% t / -40 ~ 350	1.0 lossis 1.5% t / -200 ~ 40
